Home ProductsMotor Management RelayAcrel Class 1.5 Phase Failure Function Smart Motor Protector Device ARD2-6.3/C
Acrel Class 1.5 Phase Failure Function Smart Motor Protector Device ARD2-6.3/C
Acrel Class 1.5 Phase Failure Function Smart Motor Protector Device ARD2-6.3/C Acrel Class 1.5 Phase Failure Function Smart Motor Protector Device ARD2-6.3/C Acrel Class 1.5 Phase Failure Function Smart Motor Protector Device ARD2-6.3/C Acrel Class 1.5 Phase Failure Function Smart Motor Protector Device ARD2-6.3/C Acrel Class 1.5 Phase Failure Function Smart Motor Protector Device ARD2-6.3/C
Contact Now

Acrel Class 1.5 Phase Failure Function Smart Motor Protector Device ARD2-6.3/C

Minimum Order Quantity : >=1 Pieces Price : $91.00
Packaging Details : It is packed in a crash bag and then put into a cardboard box. Supply Ability : 8000 Piece/Pieces per Day
Place of Origin: Jiangsu, China Brand Name: Acrel
Model Number: ARD2-25/CJ`

Detail Information
Accuracy: U, I: Class 1.5 Frequency: Range: 45-65Hz
Auxiliary Power Supply: AC85V~265V/DC100V~350V Installation: Panel Mounted
Dimension: 96mm*78.5mm*48mm Certificate: CE/ISO9001
Temperature: -10~55℃ Humidity: 5~95%
Communication: RS485 Altitude: ≤2000m
Port: SHANGHAI
High Light:

Phase Failure Smart Motor Protector

,

Acrel Smart Motor Protector

,

Class 1.5 motor protection device

Product Description

Acrel Class 1.5 Phase Failure Function Smart Motor Protector Device ARD2-6.3/C 0
Acrel Class 1.5 Phase Failure Function Smart Motor Protector Device ARD2-6.3/C 2
Acrel Class 1.5 Phase Failure Function Smart Motor Protector Device ARD2-6.3/C 3

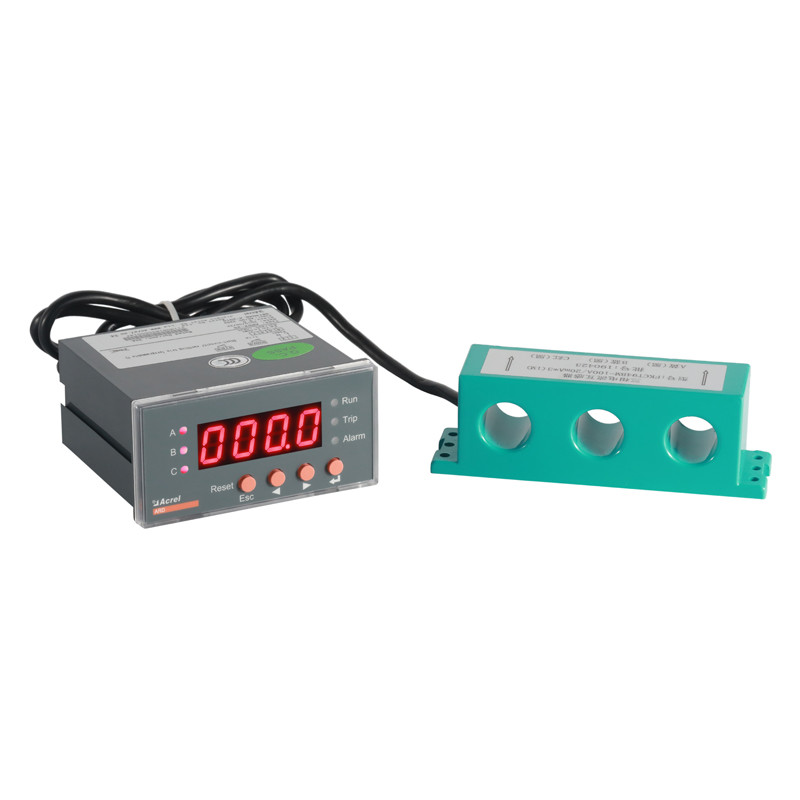

ARD2 Smart Motor Protector
● Suitable for motors with rated voltage of AC380V/660V;

● Optional leakage protection, RS485 communication, analog output, etc.

● 2 channels DI passive dry node input, signal power supply with built-in DC24V power supply;

● 4 channels DO output.
Characteristic
Acrel Class 1.5 Phase Failure Function Smart Motor Protector Device ARD2-6.3/C 4



Communication
RS485 (Modbus-RTU)
Acrel Class 1.5 Phase Failure Function Smart Motor Protector Device ARD2-6.3/C 5



Display
4 digitals LED display
Acrel Class 1.5 Phase Failure Function Smart Motor Protector Device ARD2-6.3/C 6



Rated U and I
AC380/660V, rated current up to 800A
Technical Parameters
Auxiliary power supply
AC85-265V/DC100-350V
Rated working voltage of motor
AC380V/AC660V, 50-60Hz
Relay output contactor, rated load capacity
4 way, AC250V,3A,DC30V,3A
Switching input
2 way , optical isolation
Communication
RS485 Modbus
Volume of SOE event recorder
8 events
VoluDielectric intensity
4000V AC/minute
Working temperature
-10℃~55℃
Storage temperature
-20℃~65℃
Relative humidity
5%~95% , non-condition
Altitude
≤2000m
Class of pollution
2
Protection level
IP20
Function

Accuracy
U, I: Class 1.5


Frequency
Range: 45-65Hz


Auxiliary power supply
AC85V~265V/DC100V~350V


SOE event recorder
Record 8 fault messages
Acrel Class 1.5 Phase Failure Function Smart Motor Protector Device ARD2-6.3/C 7
Acrel Class 1.5 Phase Failure Function Smart Motor Protector Device ARD2-6.3/C 8




Installation:
Panel mounted

Dimension(L*W*H):
96mm*78.5mm*48mm

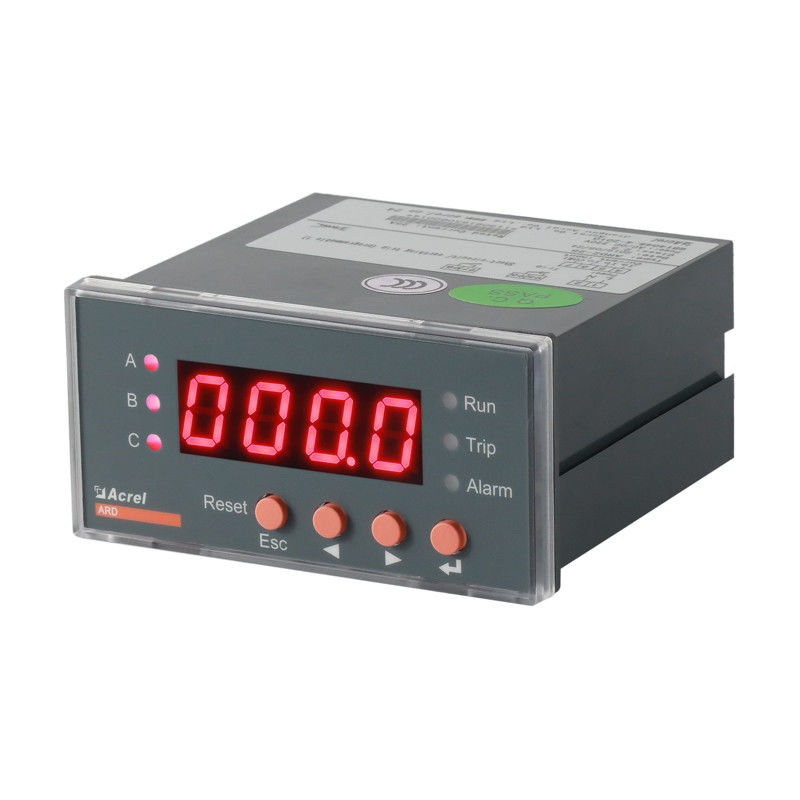

Appearance
Acrel Class 1.5 Phase Failure Function Smart Motor Protector Device ARD2-6.3/C 9
Acrel Class 1.5 Phase Failure Function Smart Motor Protector Device ARD2-6.3/C 10
Acrel Class 1.5 Phase Failure Function Smart Motor Protector Device ARD2-6.3/C 11
Acrel Class 1.5 Phase Failure Function Smart Motor Protector Device ARD2-6.3/C 12
Acrel Class 1.5 Phase Failure Function Smart Motor Protector Device ARD2-6.3/C 13
Acrel Class 1.5 Phase Failure Function Smart Motor Protector Device ARD2-6.3/C 14
Acrel Class 1.5 Phase Failure Function Smart Motor Protector Device ARD2-6.3/C 15
Acrel Class 1.5 Phase Failure Function Smart Motor Protector Device ARD2-6.3/C 16
Acrel Class 1.5 Phase Failure Function Smart Motor Protector Device ARD2-6.3/C 17
Jiangsu Anke Ruiwei Grid Research Institute Co., Ltd.
baojingjun@email.acrel.cn
Address:No.5,Dongmeng Road,Nanzha Town,Jiangyin City,Jiangsu Province.
Acrel Class 1.5 Phase Failure Function Smart Motor Protector Device ARD2-6.3/C 18
FAQ

1. Q: Where is your factory located ? How can I visit here ? Can your factory arrange transportation for me?

A: Our production base is located in Jiangyin City, Jiangsu Province, China; Which will take about 2 hours by car from Shanghai to our factory. We can arrange our driver to pick you up from your hotel when you arrive Shanghai.

2. Q: Does your factory have the design and development capabilities, can you factory accept customized products?

A: The staffs in our R&D department are well experienced in the Electric industry, with more than 10 years’ experience. We can make customized products especially for you; please kindly contact us for more

3. Q: How long could I get my order?

A: Stock Products: shipping within 5 days.
B: Customized products: usually 10-15 days. It depends on your design and quantity.

4. Q: How is your production management and quality control system?

A: All our product process follows up ISO9001. The strict implementation of ISO9001 assures to provide error–free products to our customers. We will show you these in our workshop during your visiting.

5. Q: How can I get a sample to check the quality?

A: We are glad to offer you samples for test. Leave us message of the item you want and your city address. We will offer you detail sample packing information, and select the best way to deliver it.
