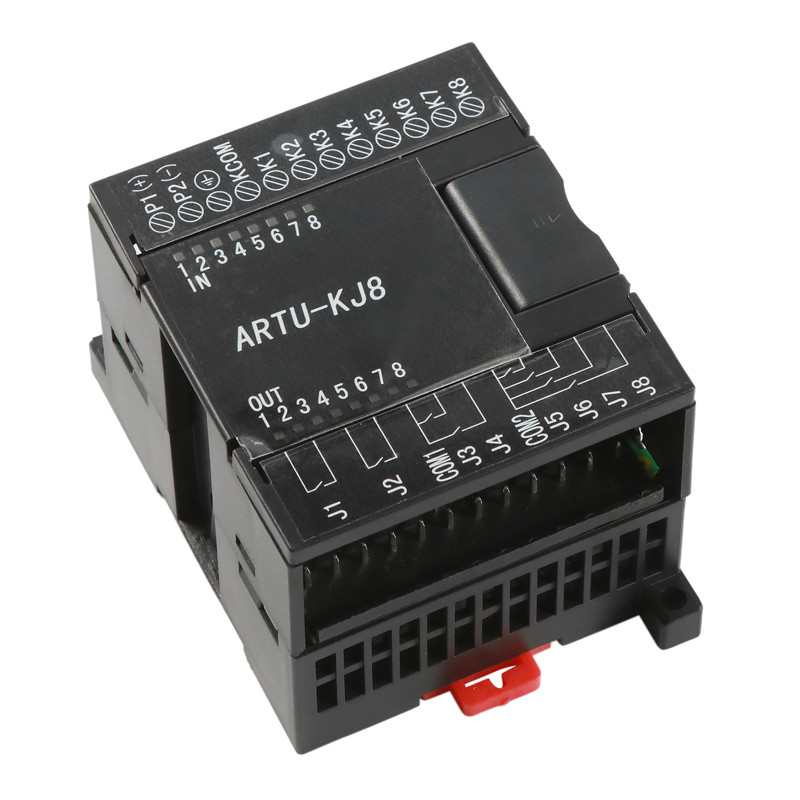

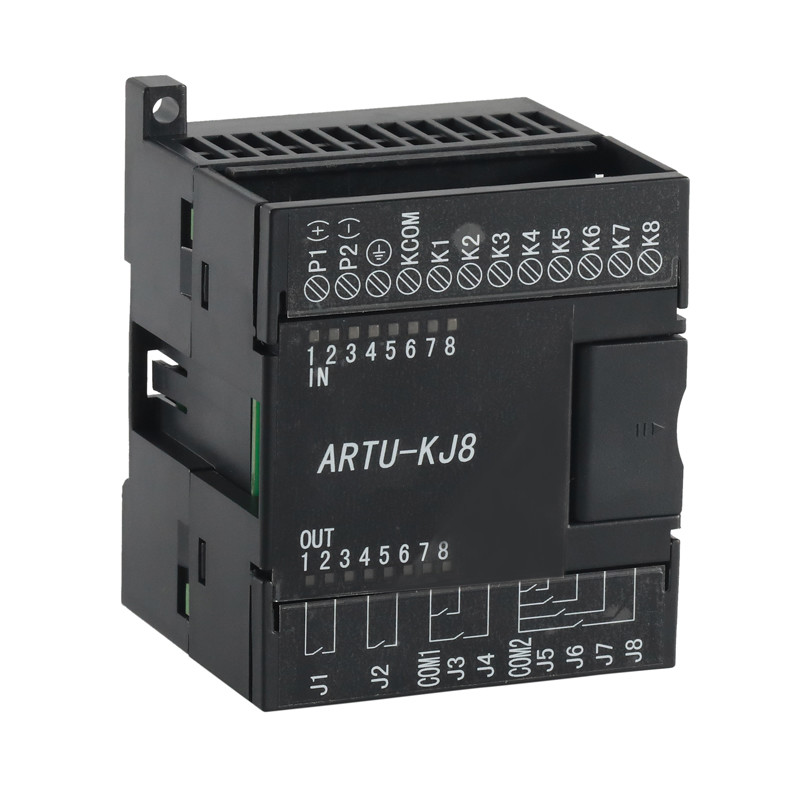

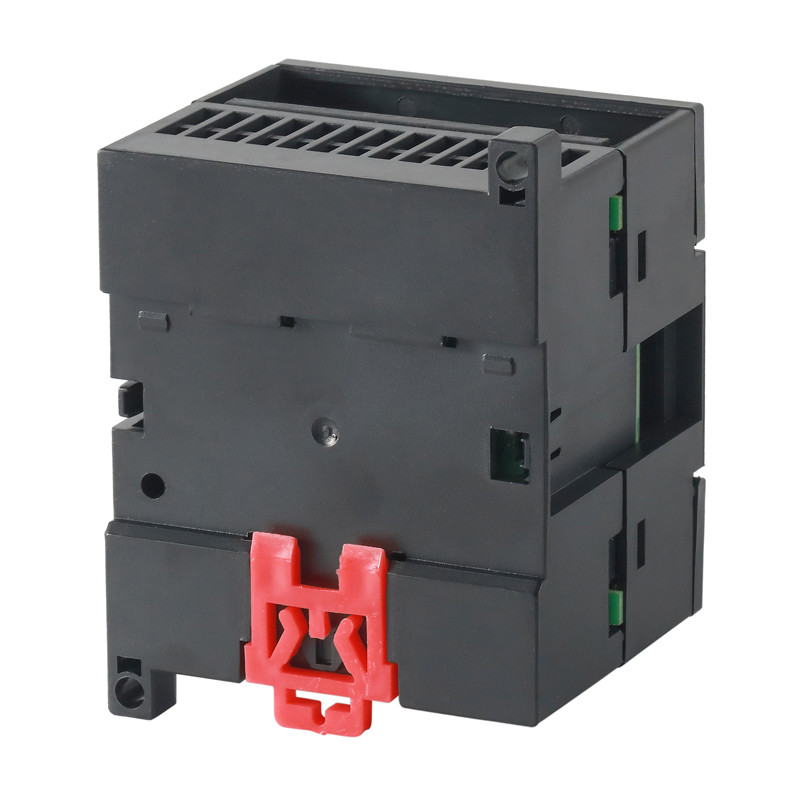

DIN Rail Mounted 24VDC 220VAC Remote Terminal Unit ARTU-KJ8 Series

Minimum Order Quantity : 1 pcs Price : USD 85/PCS
Packaging Details : Individually packed in big carton Delivery Time : 3 days
Supply Ability : 10000/month
Place of Origin: China Brand Name: Acrel
Certification: CE Model Number: ARTU-KJ8

Detail Information

Frequency: ≤500HZ Power Consumption: 24VDC(±10%); 220VAC, Allow AC/DC 85~265V
Auxiliary Power Supply: Power Consumption≤5W Installation: DIN Rail 35mm
Dimension(L*W*H): 88*71*61.5mm Switch Relay: Power Relay
High Light:

220VAC Remote Terminal Unit

,

24VDC Remote Terminal Unit

,

220VAC field terminal unit

Product Description

ARTU-KJ8 Series Remote Terminal Unit:RS485 (MODBUS -RTU);Channel state indicator and communication state indicator;24VDC (±10%); 220VAC, allow AC/DC 85~265V.



Technical Features




Items Features







Environment

Temperature -40~125
Humidity 95%
atmospheric pressure 86kPa~106kPa

















ATE100M/100/200

Active wireless temperature sensor

Wireless frequency 470MHz
Communication distance 150m in open area
Sampling frequency 25s
Transmitting frequency 25s-5min
Power source Battery
Installation Magnetic / bolted /Belt
Range of temperature -50~+125
Precision ±1
Application Joints in high or low voltage switchgears
Battery life 5 years









400 Passive wireless temperature sensor

Wireless frequency 470MHz
Communication distance 150m in open area
Sampling frequency 15s
Transmission frequency 15s
Power source CT-powered, starting current≥5A



  Installation alloy chip fixing
Sensor probe alloy bottom
Range of temperature -50~125
Precision ±1
Application Joints in high or low voltage switchgears





















ATE100P/200P

Outdoor wireless temperature sensor

Wireless frequency 470MHz
Communication distance 150m in open area
Sampling frequency 25s
Transmitting frequency 25s-5min
Power source Battery
Installation bolted /Belt
Range of temperature -50~+150
Precision ±0.5
Application Voltage switchgears
Battery life 5 years
Protection level IP68



                                                                  Writing



DIN Rail  Mounted 24VDC 220VAC Remote Terminal Unit ARTU-KJ8 Series 0



                                                                      Typical  Connection

DIN Rail  Mounted 24VDC 220VAC Remote Terminal Unit ARTU-KJ8 Series 1
